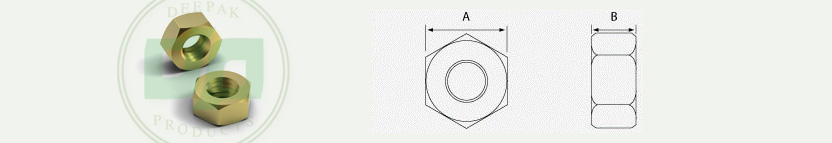

Din 934 Hexagon Full Nuts
| Nominal Dia |
Pitch |
A (max) |
B (nom) |
| M2 |
0.4 |
4 |
1.6 |
| M2.5 |
0.45 |
5 |
2 |
| M3 |
0.50 |
5.5 |
2.4 |
| M3.5 |
0.60 |
6 |
2.8 |
| M4 |
0.70 |
7 |
3.2 |
| M5 |
0.80 |
8 |
4 |
| M6 |
1.00 |
10 |
5 |
| M8 |
1.25 |
13 |
6.5 |
| M10 |
1.50 |
17 |
8 |
| M12 |
1.75 |
19 |
10 |
| M14 |
2.00 |
22 |
11 |
| M16 |
2.00 |
24 |
13 |
| M18 |
2.50 |
27 |
15 |
| M20 |
2.50 |
30 |
16 |
| M22 |
2.50 |
32 |
18 |
| M24 |
3.00 |
36 |
19 |
| M27 |
3.00 |
41 |
22 |
| M30 |
3.50 |
46 |
24 |
| M33 |
3.50 |
50 |
26 |
| M36 |
4.00 |
55 |
29 |
